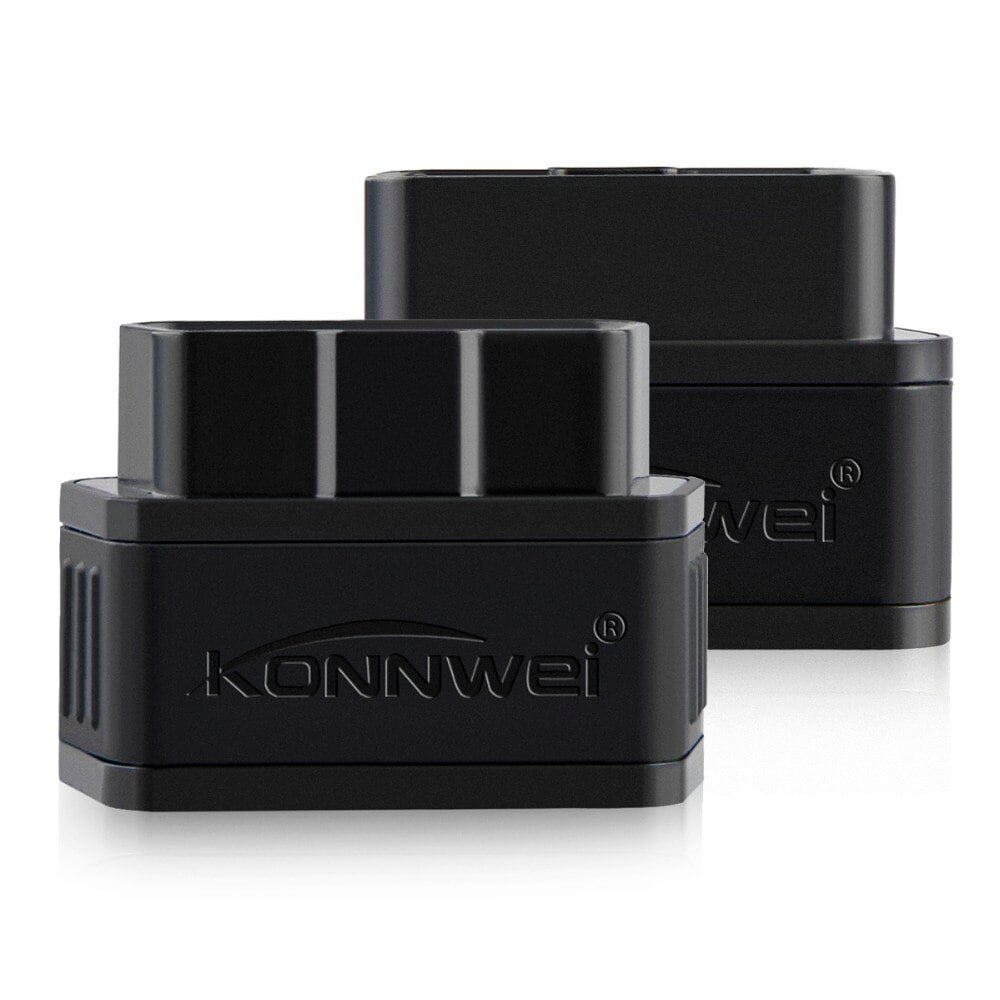

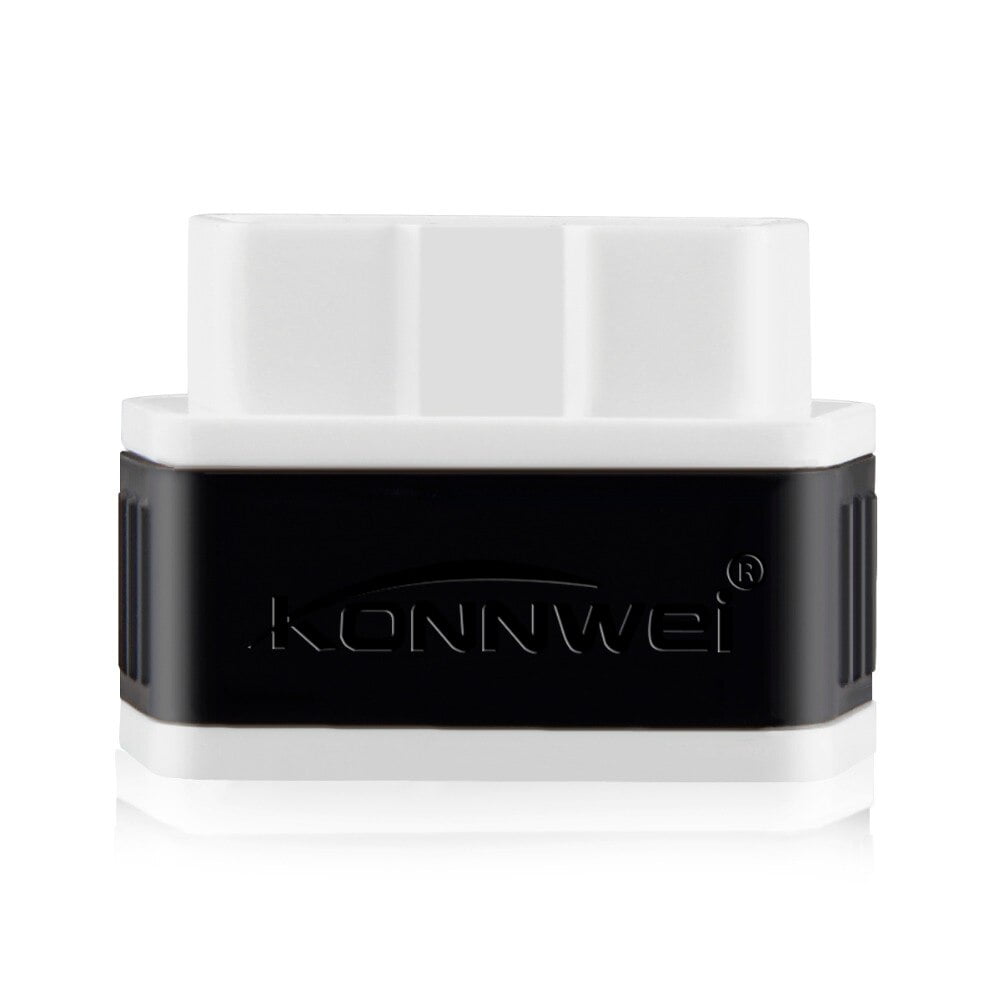

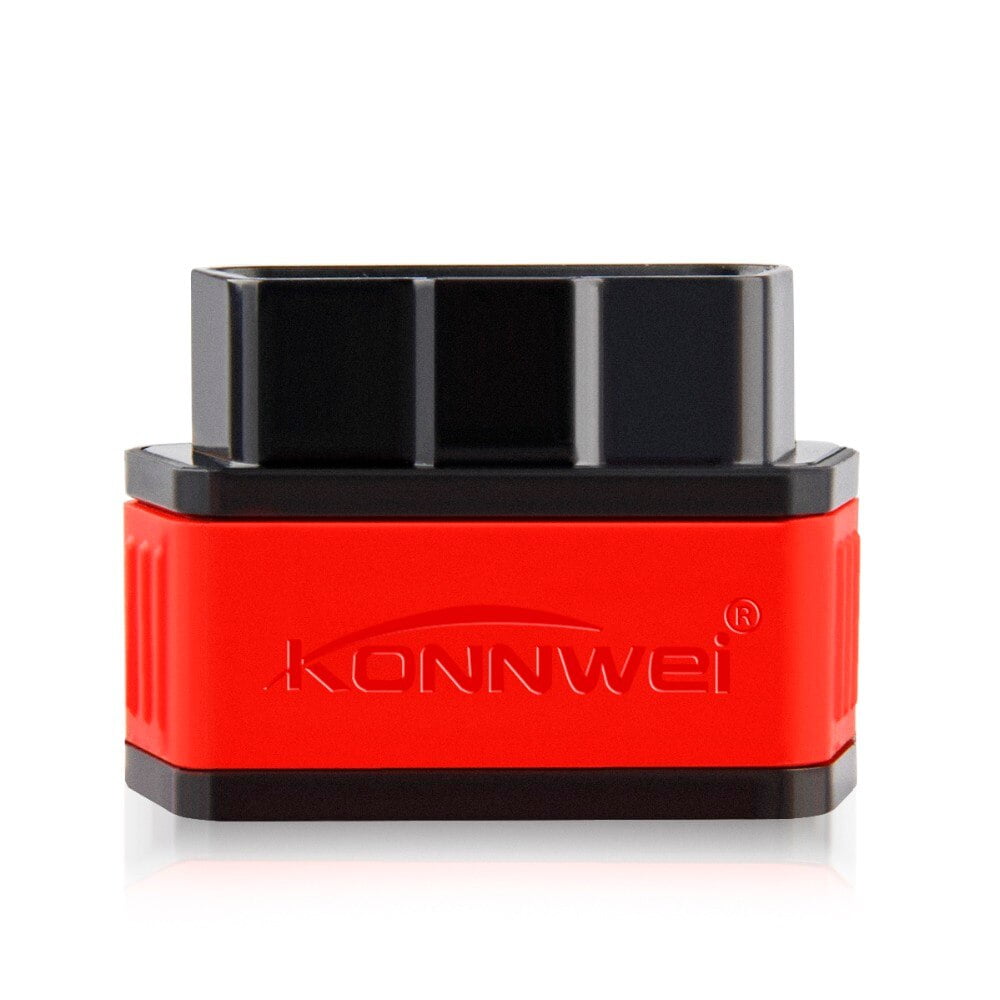

ELM327 OBD2 Scanner Car Scanner Icar2 KONNWEI Bluetooth Car Diagnostic Tool

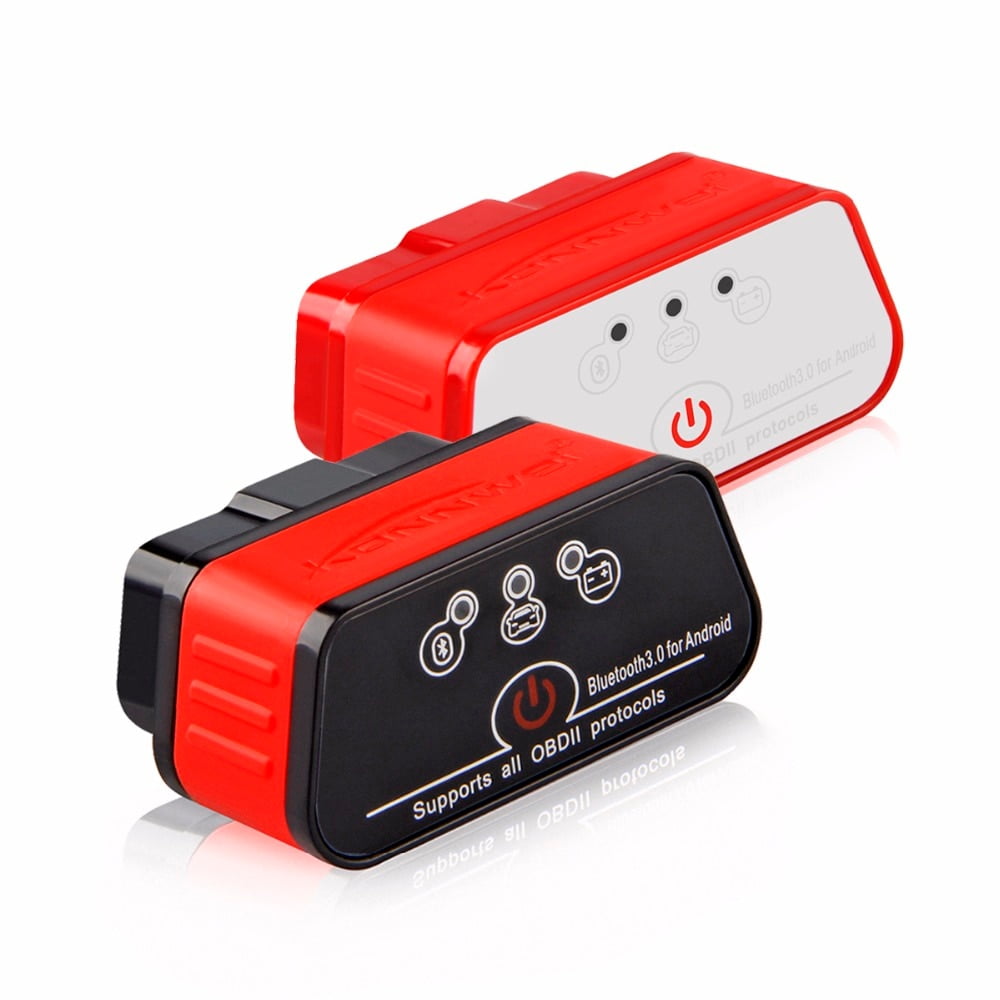

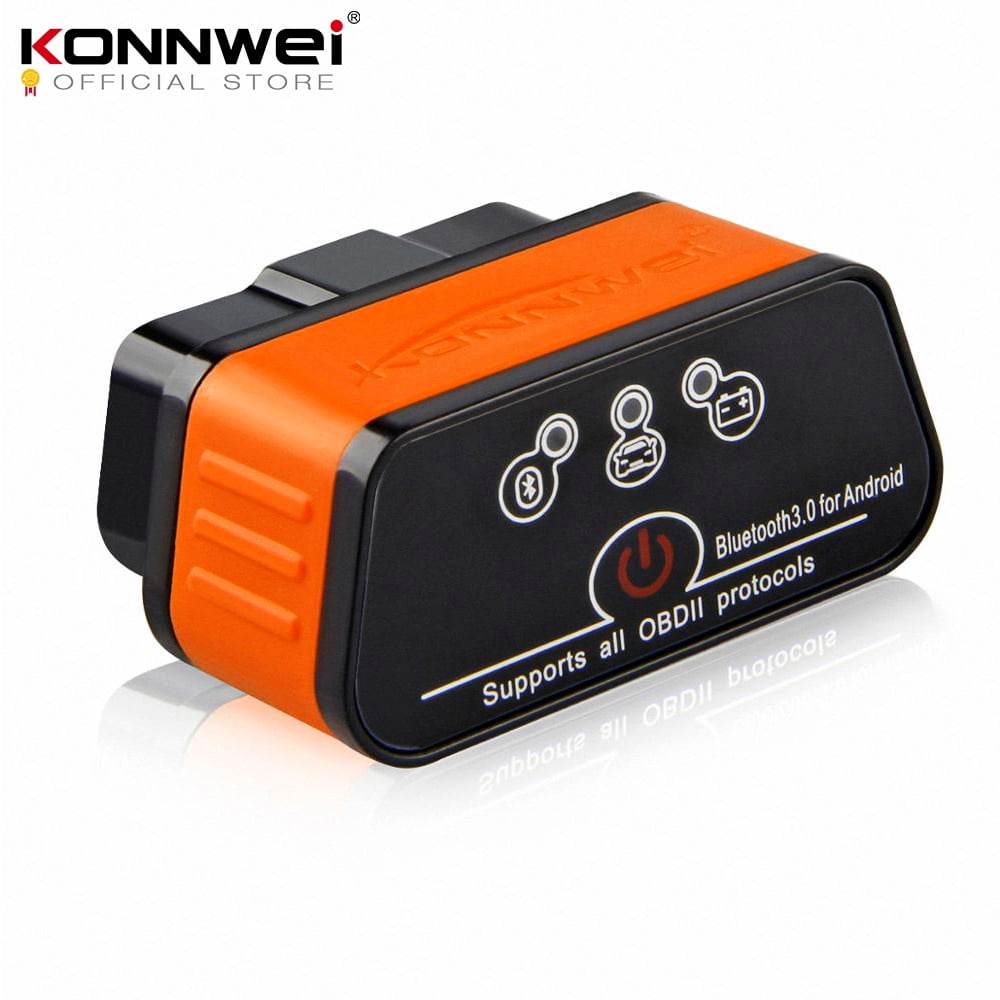

Name: ELM327 OBD2 Scanner Car Scanner Icar2 KONNWEI Bluetooth Car Diagnostic Tool
SKU: -92
Price: 24.99 USD
Availability: InStock

$24.99 ~~$35.76~~

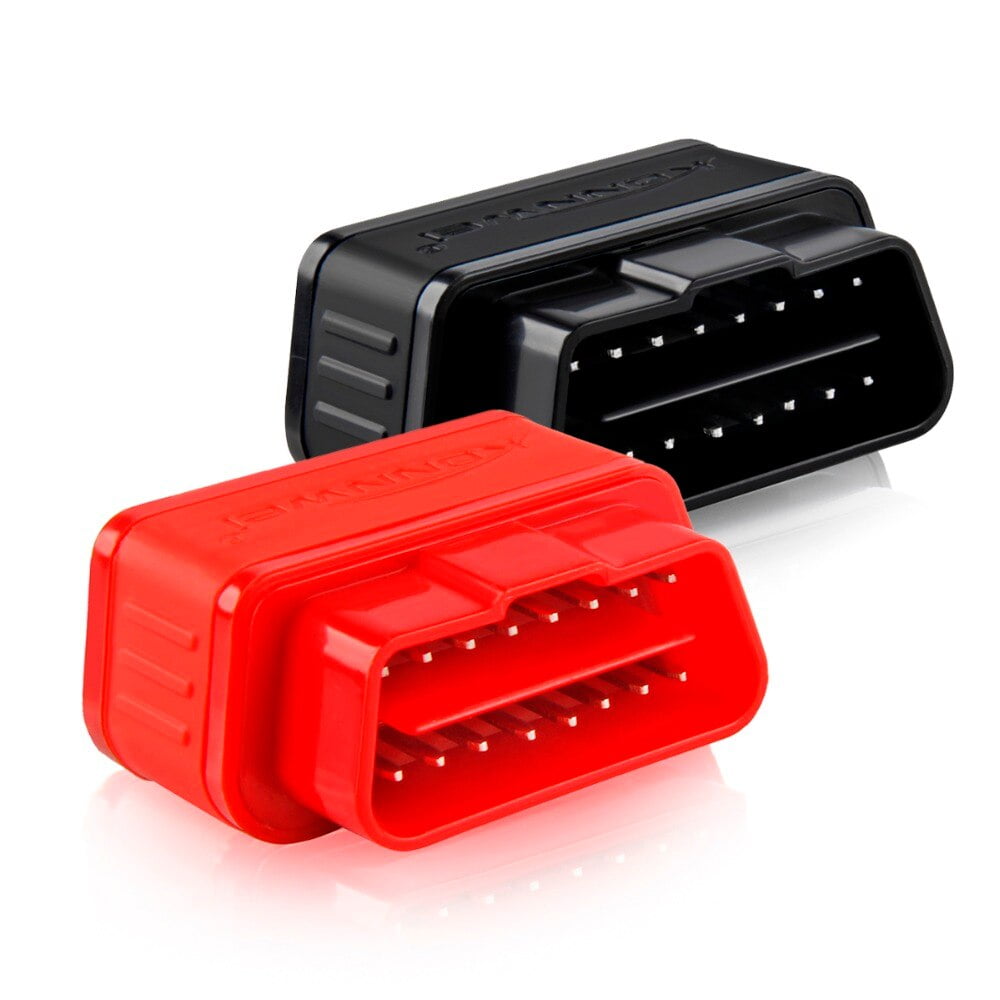

Variant:

Choose an option

Black

Red

black and red

black and white

orange and black

red and white

Clear

Quantity

Description

ELM327 OBD2 Scanner Car Scanner Icar2 KONNWEI Bluetooth ELM 327 V 1.5 Car Diagnostic Tool OBD 2 Scanner Pic18f25k80 Chip Real V1.5

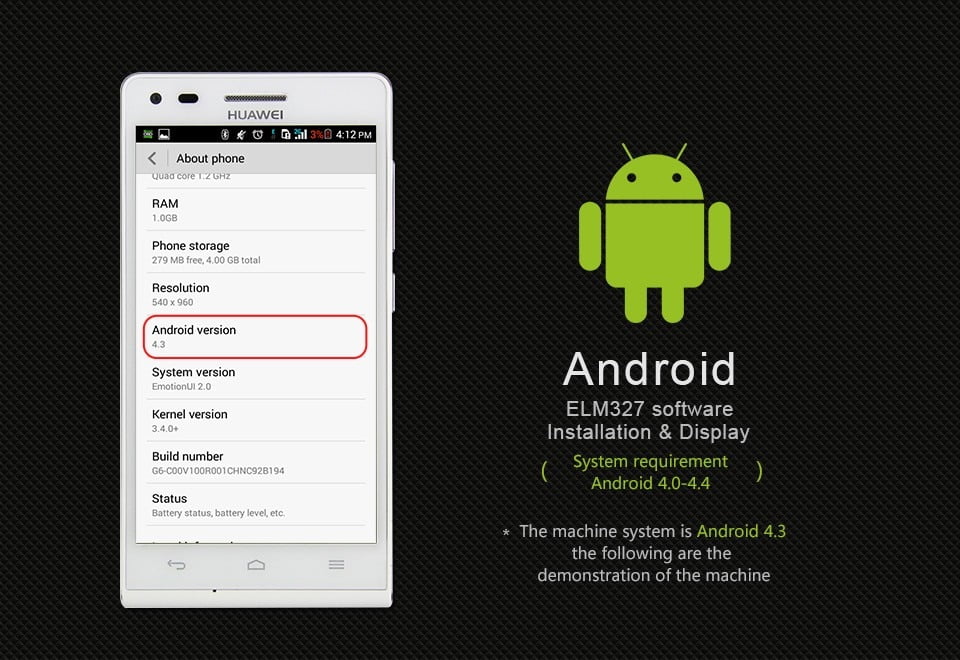

1. This is Bluetooth version, support android phone, can’t work with Iphone, ipad and car radio. Bluetooth ELM327 does support the diesel vehicles, but not for trucks, and this ELM327 is bluetooth version for android system cellphones/smart device.

2. The Switch is reset function, not for the power switch, pls kindly be aware of it.

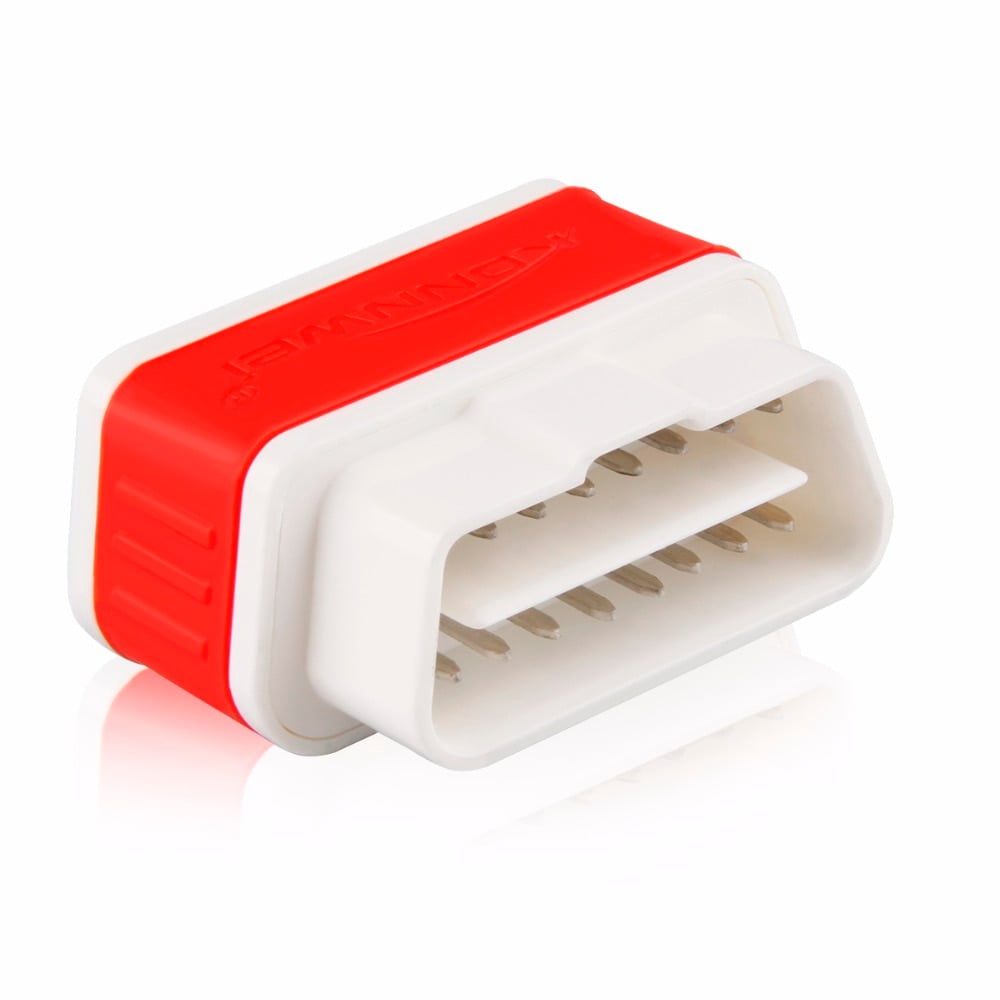

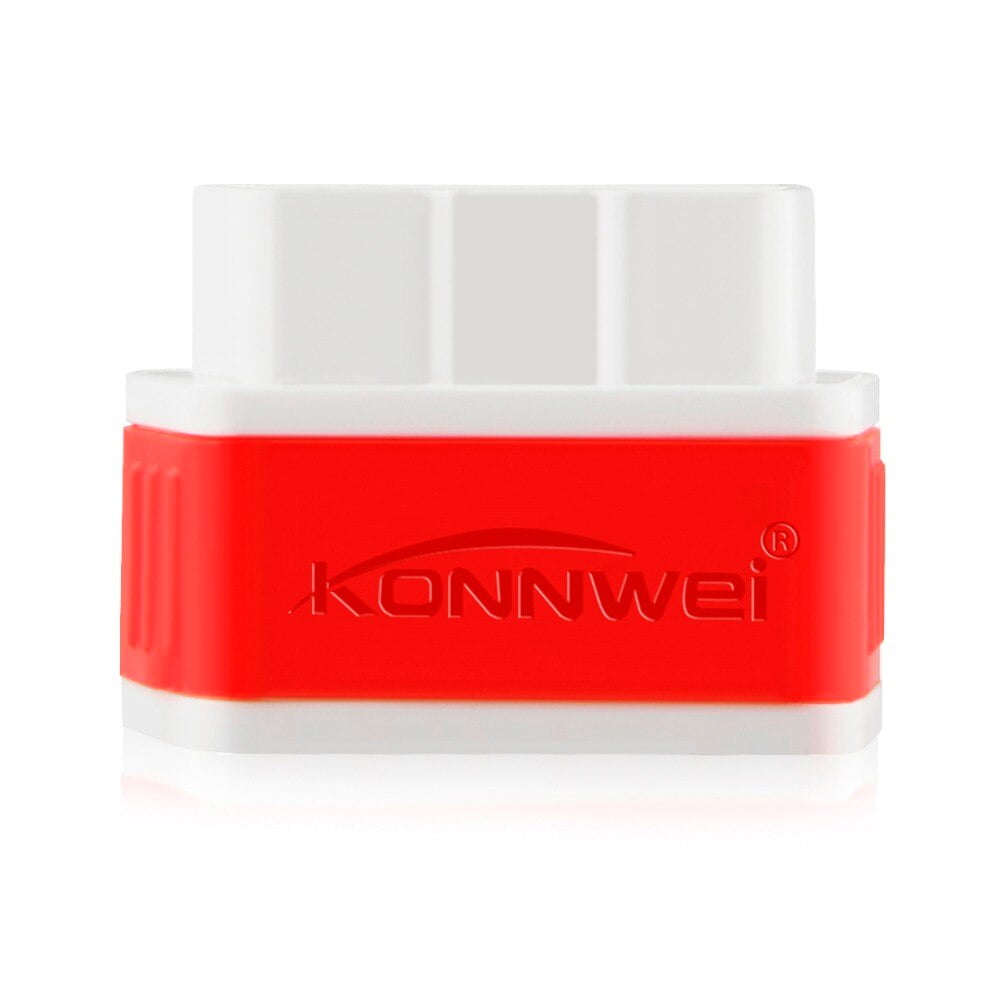

ICar 2 Bluetooth Brief

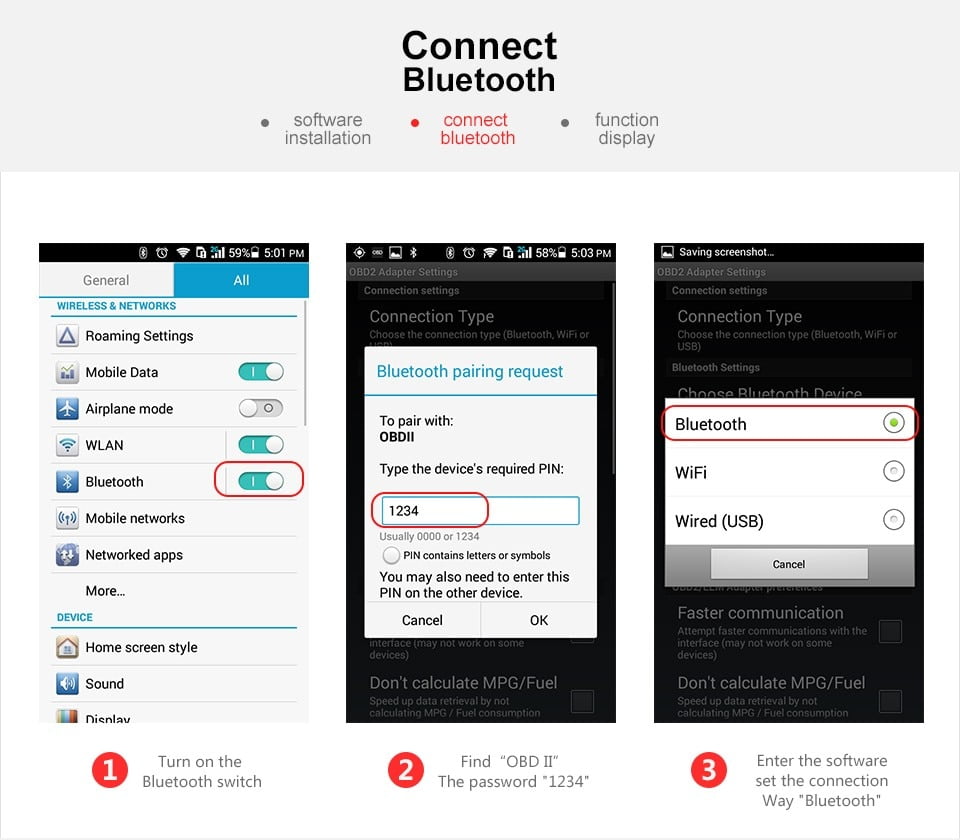

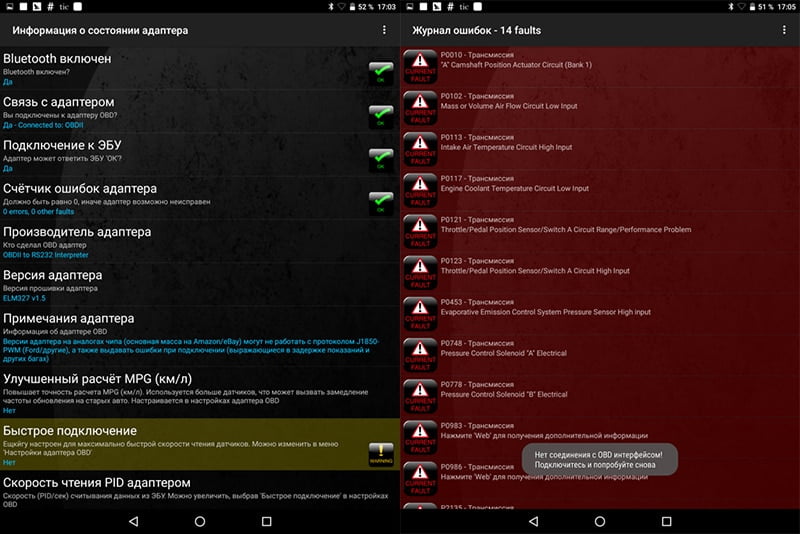

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to anycomputer, tablet or smartphone, with associated diagnostic procedures . Doing these simple operations, you will be able:

* Read, erase and display code descriptions problems – both pending and permannent codes

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

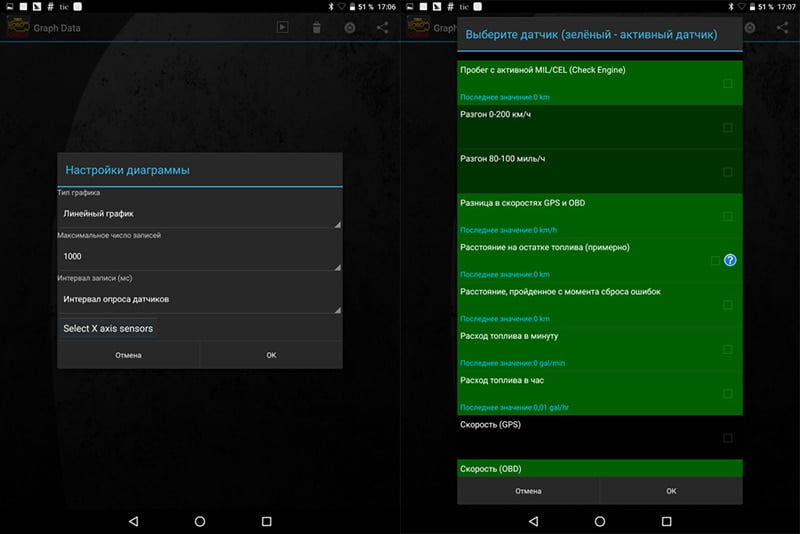

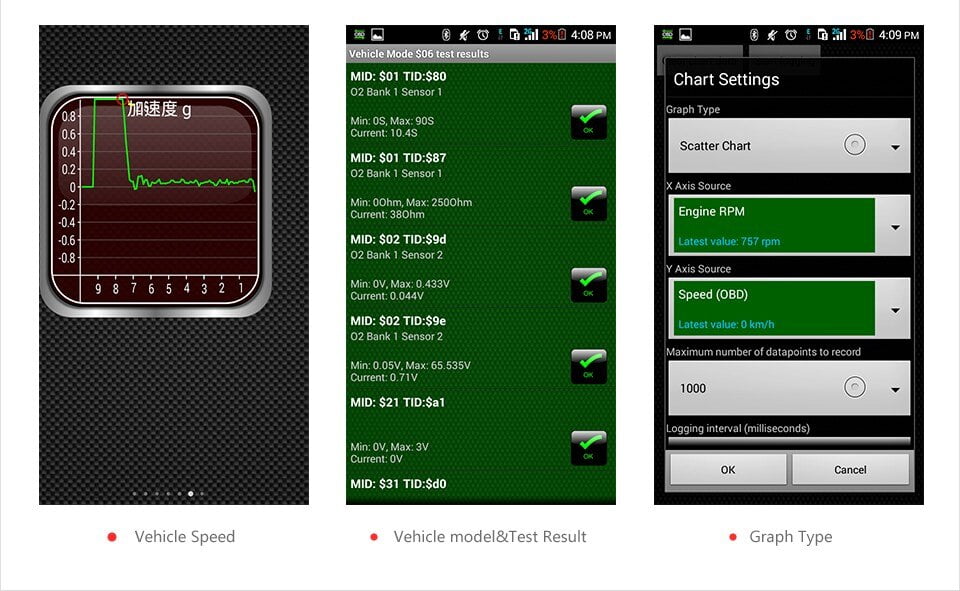

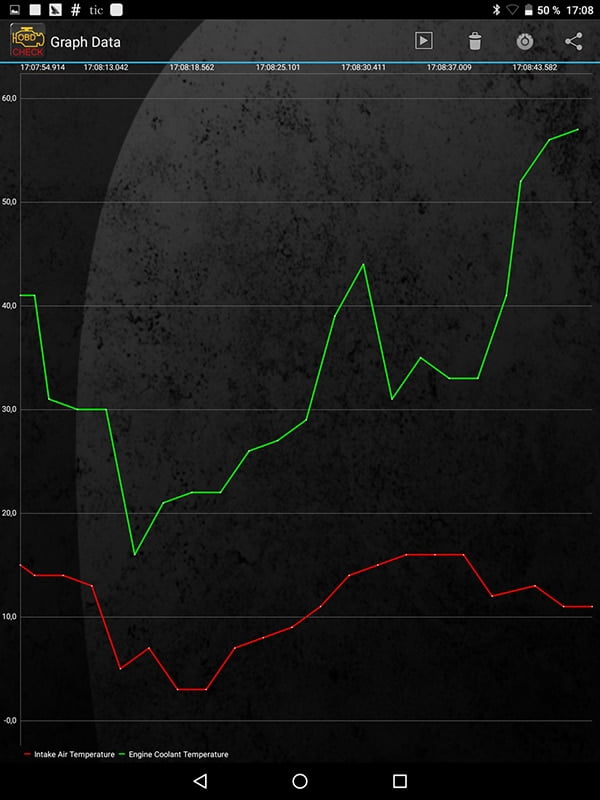

* Record various parameters, display graphics in real time, and more.

ELM327 1.5 ICar2 Bluetooth Scanner Features:

Small size, compact structure. Plug and never unplug, ON-OFF Switch allows you to turn off the elm327 totally.

Stable bluetooth 3.0 wireless connection

No wires or batteries (adapter is powered by the diagnosis size sockets)

Stop communication, press the button, no more consumption.

Supports all OBDII 9 protocols

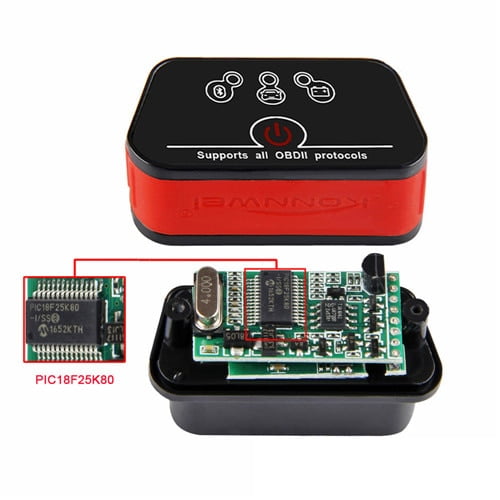

The adapter uses the fastest and most reliable PIC18F25K80 chips

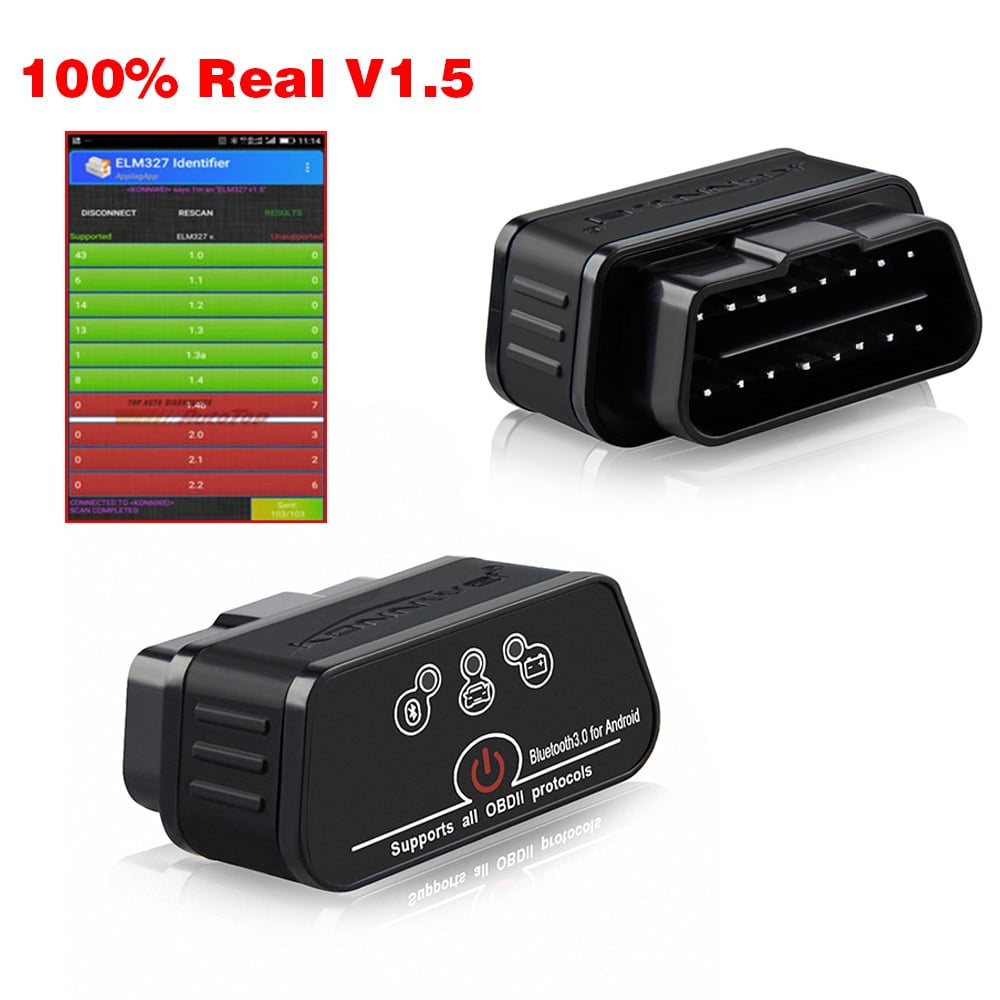

The icar2 ELM327 Bluetooth adapter is 100% V1.5, support all obd2 commands.

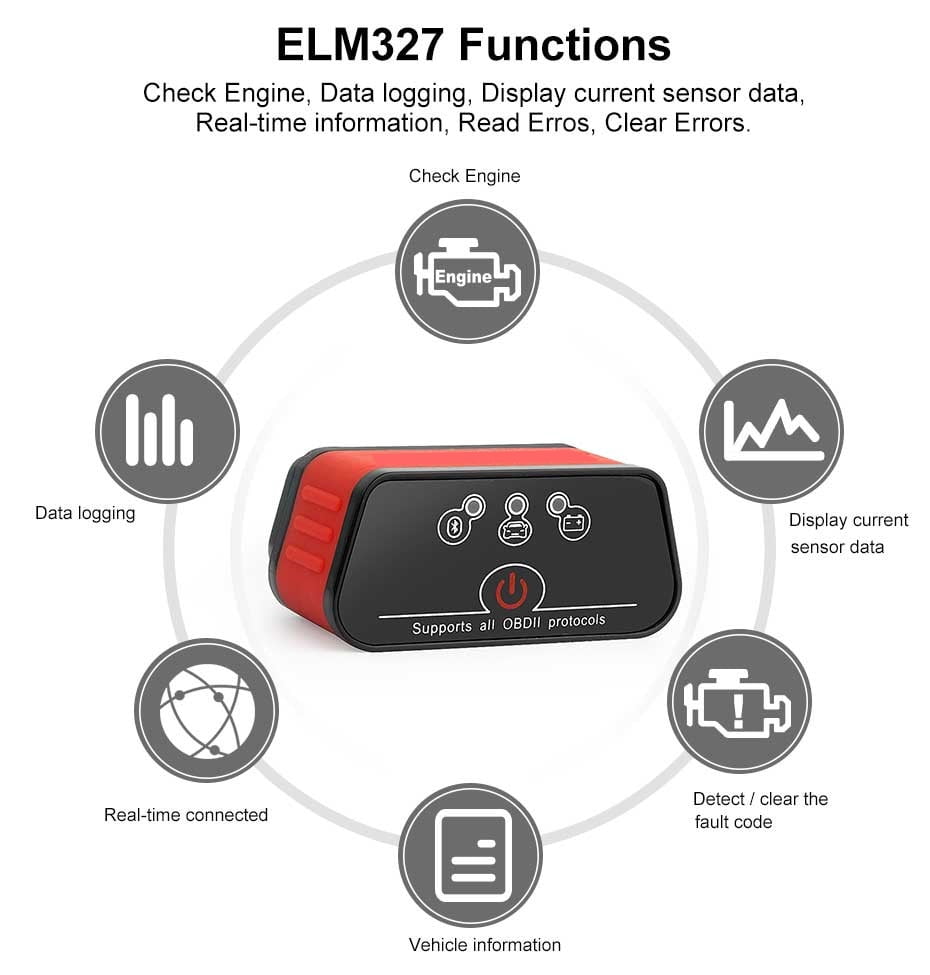

ICar2 Detailed Functin List:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL (“Check Engine” light)

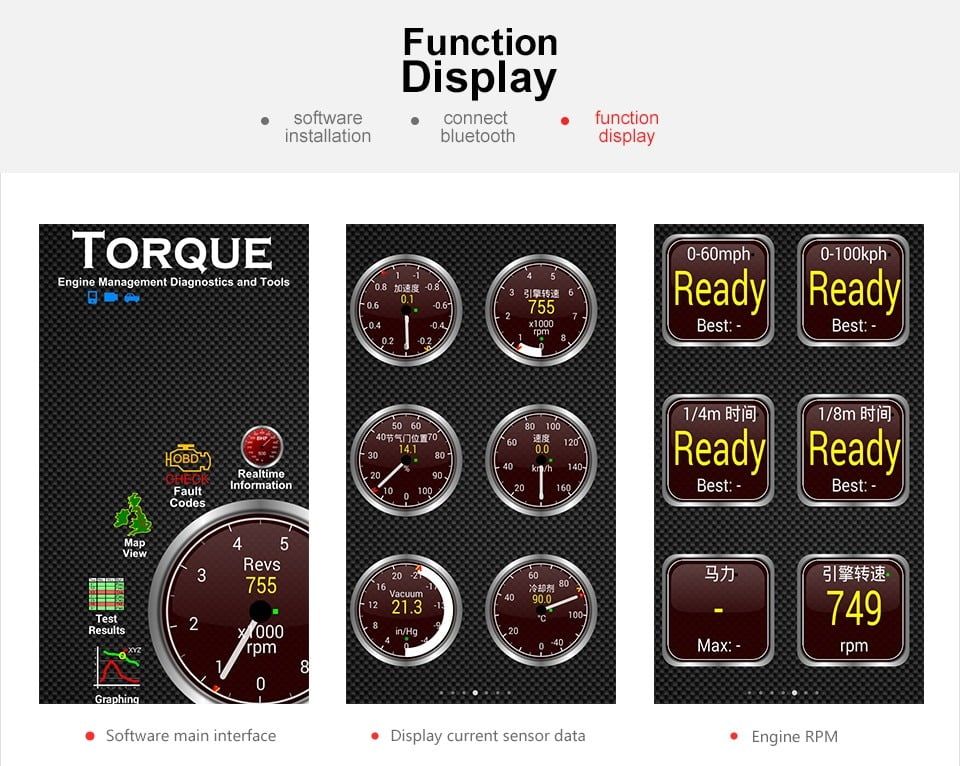

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

With iCar you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

Car 2 OBD2 is a high-quality automotive tool for car diagnostics,

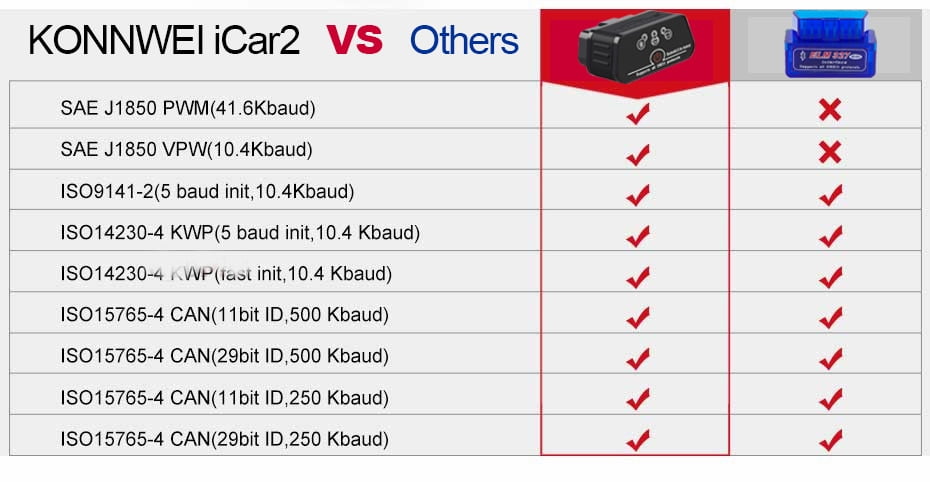

V1.5 supports all OBD-II Protocols:

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

The OBDII compliant vehicles referernce as below:

1996 or newer model year vehicle made in the United States

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

2004 or newer model year vehicle made in the European Union

Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year, doesn’t support Clio 2

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

2008 or newer model year vehicle made in the Asian Union

Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda

Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota

Warm Notice

For Lada/ VAZ/ UAZ car makes, please don’t purchase If your car is before2011.

For Renault Dacia Logan car model, please don’t purchase If your car is before 2009.

You may also pop the hood and look for a sticker named “VEHICLE EMISSION CONTORL INFORMATION”

NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol. If you’re not sure, ask us anytime!

Notes:

Delivery time Note: If your Confirmation Time is coming, you still not receive the goods, please contact us, we will extend the delivery date in advance.

No Dispute please: Please do not apply dispute within 60 days, let’s keep good business relationship. Thanks for your kind understanding.

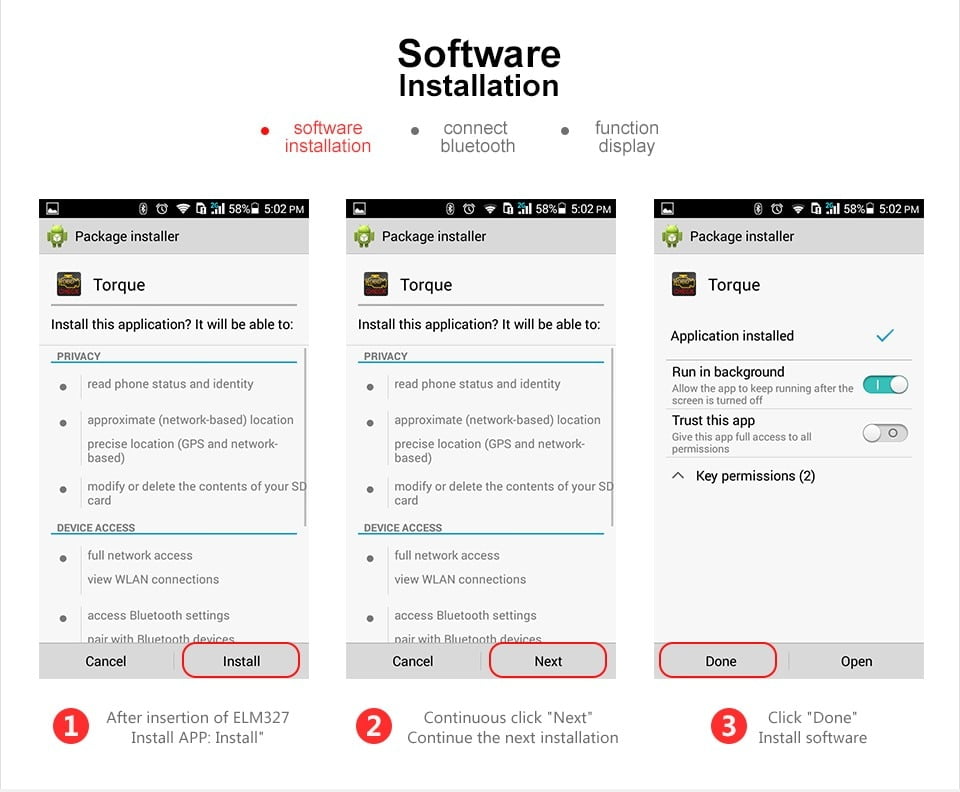

Step by step guideilnes for ICar2 Bluetooth Adapter

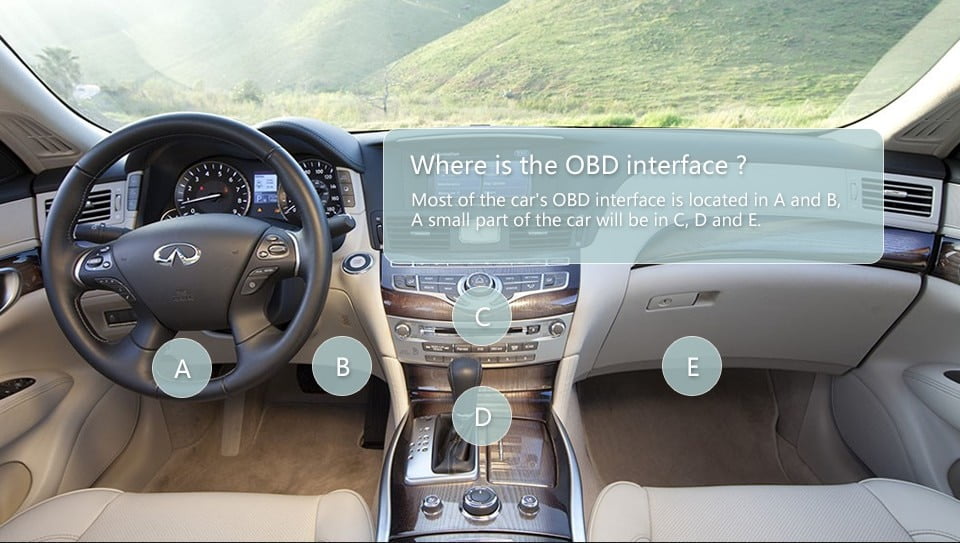

1. Locate your OBDII Diagnostic Port. If your car does’t have OBDII 16pin Port, you can check the pins on your diagnositc port, we will help you find the connector the convert it to 16pin.
