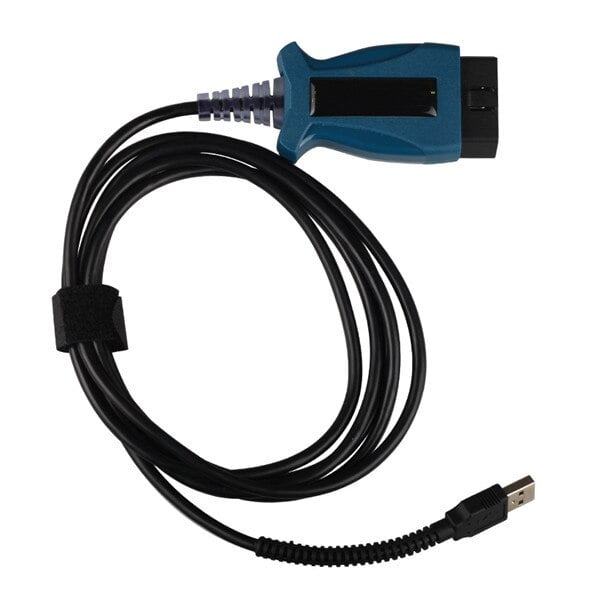

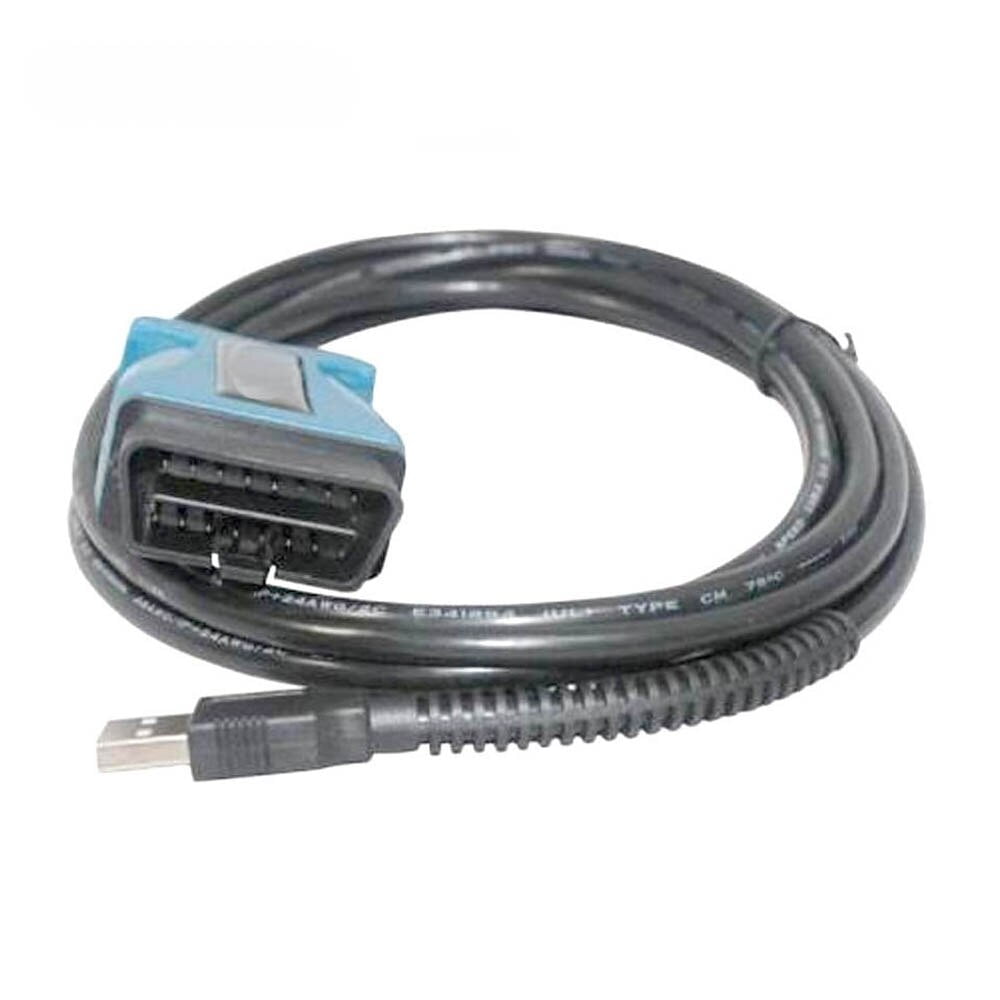

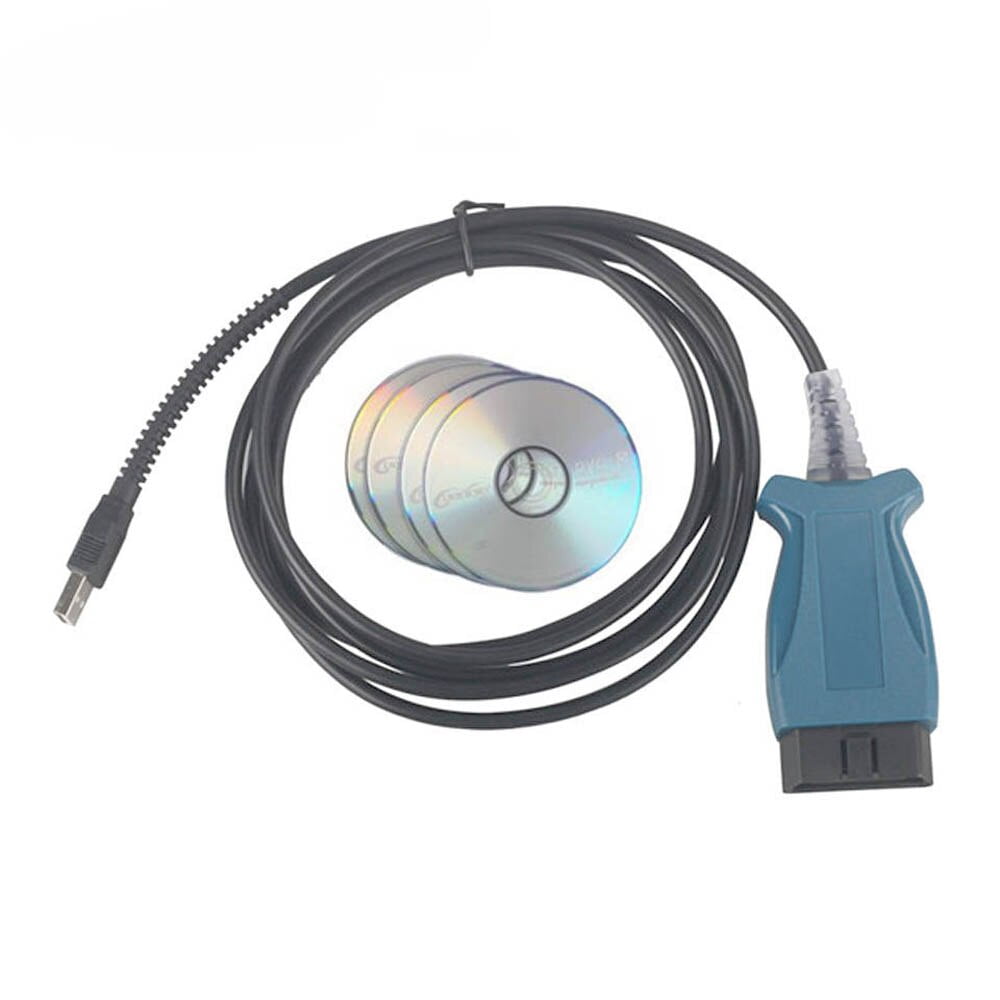

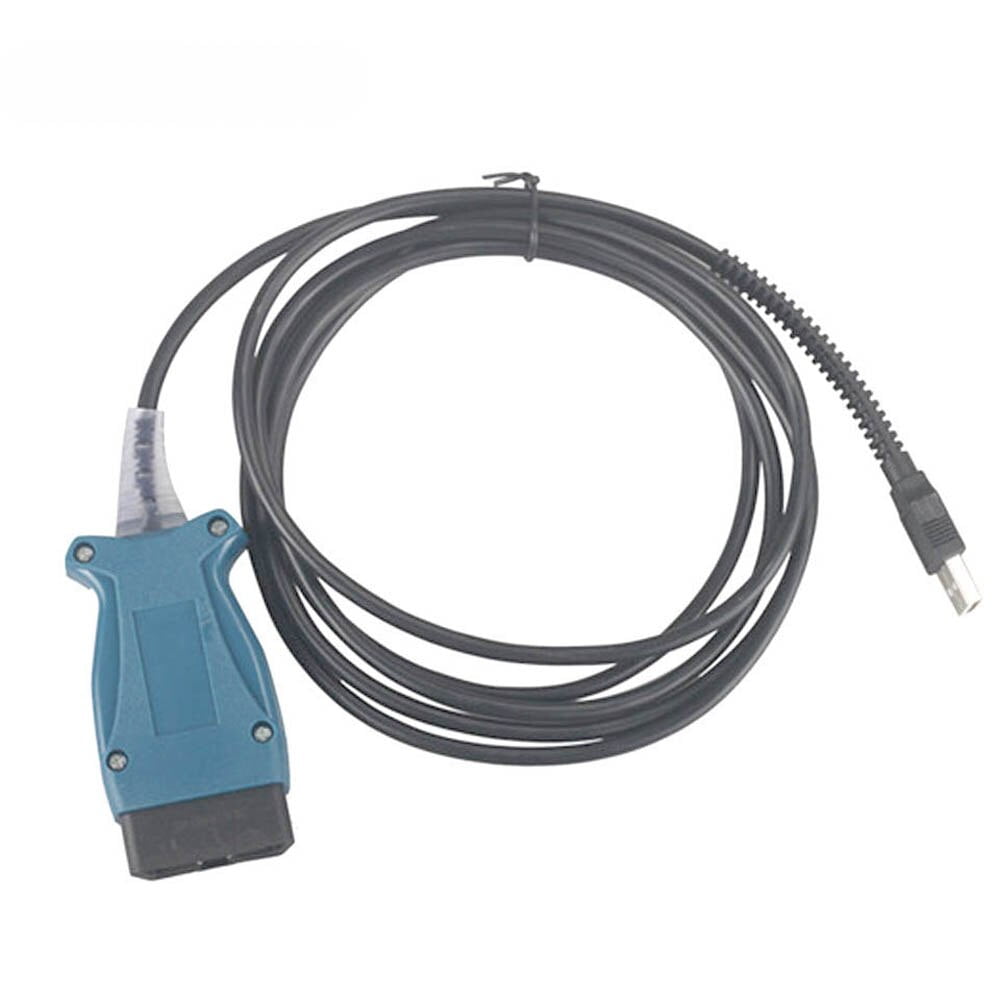

JLR SDD PRO V159 for Jaguar and for Land Rover 2005-2017Â Year Via OBD2 16PIN to USB Diagnostic Cable Support CAN ISO9141 Car
Â
Software Version:Â V159
Â
JLR SDD V159 ​Support Car Model:  for Jaguar , for Land Rover after 2005 till latest 2014
JLR SDD V159 PRO ​Support Car Model:  for Jaguar , for Land Rover after 2005 till latest 2016
Â
Â
Language:  English, German, Russian, French, Dutch, Portuguese, Japanese, Spanish, Italian and Simplified Chinese. Â
Â
Support System:Windows XP and windows 7 32bit, WIN10
Â
Can not Updated
Â
Support L316, L319, L320, L322, L359, L538 Vehicle Lines
Support X100, X150, X202, X250, X350, X351, X400 Vehicle Lines
Â
Notice :
1. No Internet Connecting, Or it will make damage to JLR cable!!!
2. JLR version after V137 do not support offline programming
Â
Â
Features:Â
1. Data Lists
2. Active Tests
3. Monitor
4. Utility tests
5. Reprogramming
6. Diagnostics Trouble Codes
Â
Bus Protocols:
Â
1. J1850PWM / SCP
2. ISO9141 / KWP2000
3. ROSCO
4. Medium Speed CAN
5. CAN Bus (capable of ISO 15765, GMLAN, and ISO14229)Â
Â
Â
Â

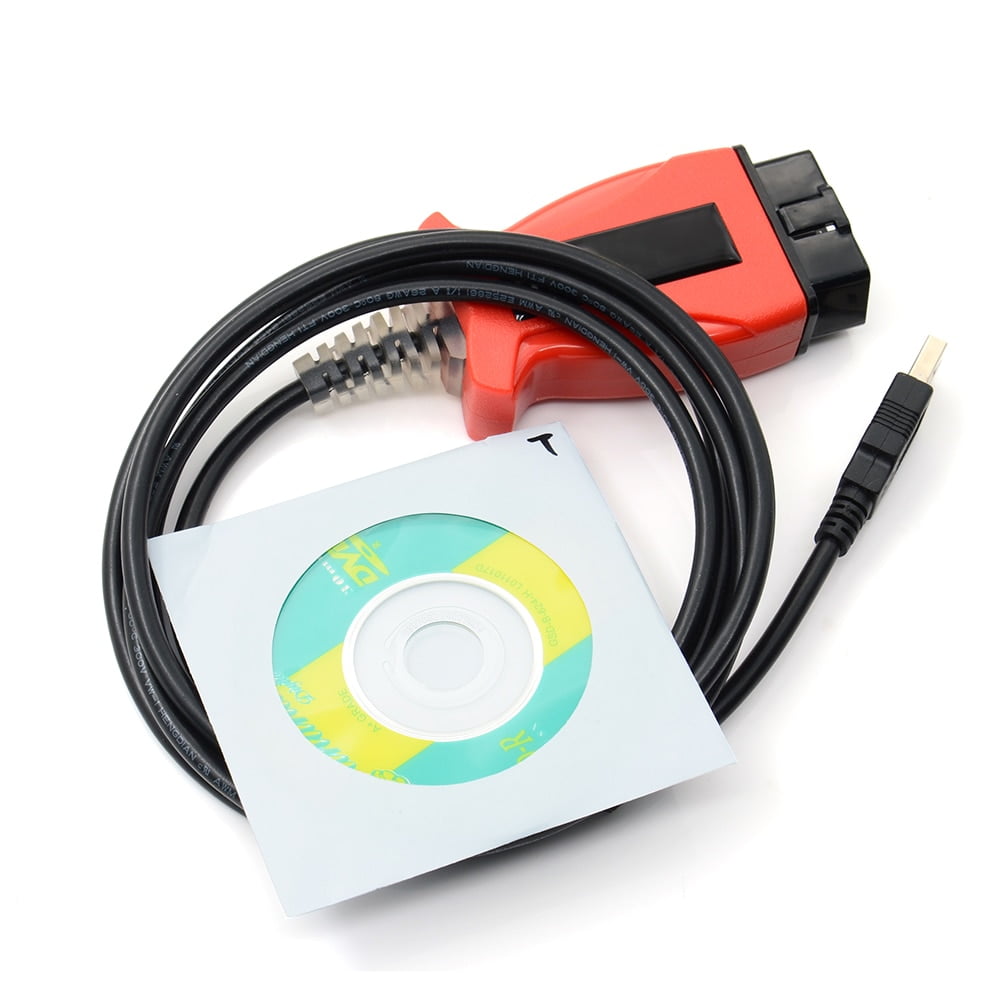

JLRÂ 3-in-1 scanner supports Jaguar and Land Rover up to 2016 year, Toyota up to 2017 year, and Volvo up to 2014 year.
JLRÂ V-o-l-v-o V-I-D-A T-o-y-o-t-a TIS 3 in 1 Scanner
Supported vehicle List:
Jaguar from 2005-2016
Land Rover from 2005-2016
Toyota from 1996-2017
Volvo from 1996-2014
Â
Software version:
J-L-R: V159
V-o-l-v-o: 2014D
T-o-y-o-t-a: V14.10.028
Â
Features and Benefits:
1. Data Lists
2. Active Tests
3. Monitor
4. Utility tests
5. Reprogramming
6. Diagnostics Trouble Codes
7.DICE – Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle.Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.
8.DICE has an integrated CARB cable, which is connected to the vehicle’s diagnostic socket. When connecting to the vehicle, DICE is powered as long as the battery is charged.
9.DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.
10.DICE is equipped with four status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.
11. At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.
12. In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.
13.High performance with ARM cpu inside.
14.High reliability of products using SMD chip, and certified by CE and FCC.
Â
Specifications:
1. Administration – General information, design and function
2. Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)Â
3. Service and maintenance
4. Engine with mounting and equipment
5. Electrical system
6. Power transmission
7. Brakes
8. Suspension and steering
9. Springs, shock absorbers and wheels
10. Body and interior – among other things, diagnostics, design and function, repair and spare part information
11. Other – special vehicles, e.g., ambulances, police cars. Components that deviate from standard.
12. Dimensions: 3″ x 1.75″
13. J2534 and J2534-1 compliant device driverÂ
14. Commercial Range (0 to +70 C)Â
15. Operating Voltage: Bus-powered by USBÂ
16. Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device driver
